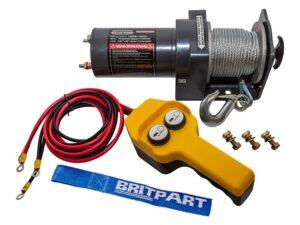

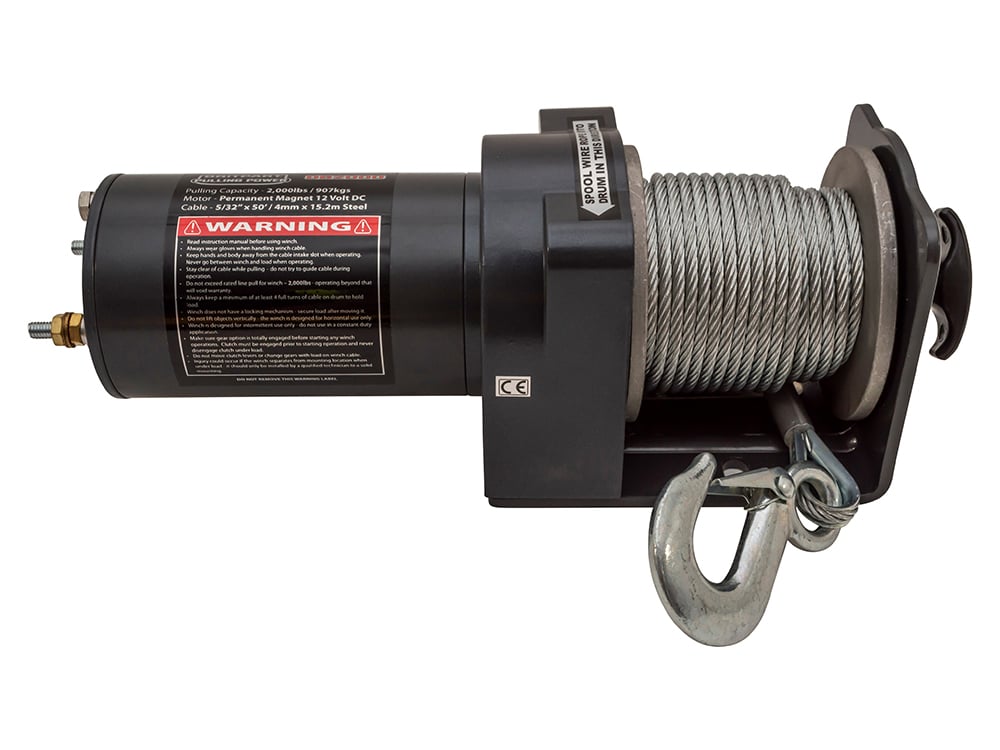

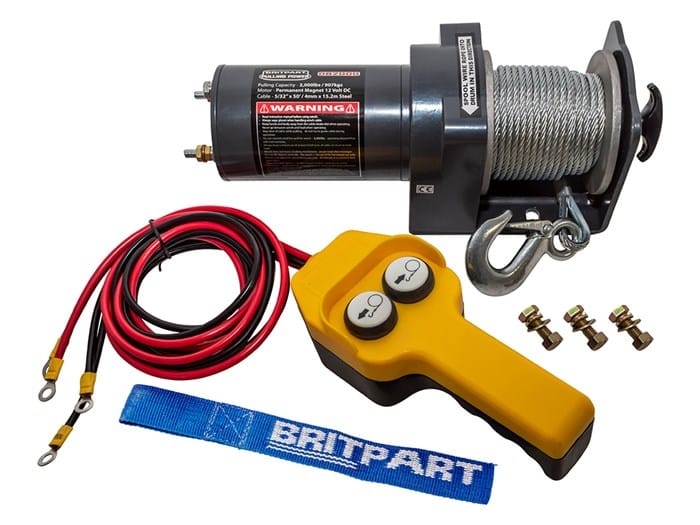

Britpart Pulling Power Winch – DB2000 – BRITPART

Powerful and reliable electric winches.

If you are serious about off-roading then a winch is an essential piece of kit. They are indispensable when getting yourself and others out of tricky situations.

Features

• 1.0Kw (1.5Hp) permanent magnetic DC motor
• Planetary gear system for fast line speed
• Free spooling
• Power in and power out
• Low electric current
• Tension plate to prevent rope entanglement
• 24 month warranty

Specification

Rated line pull – single line – 2,000lbs  /  907kg
Gear reduction ratio – 153:1
Motor (series wound) – 1.5Hp  /  1.0Kw
Drum size (D x L) – 1.26 x 2.8"  /  32 x 71mm
Cable supplied – 0.16" x 50'  /  4mm x 15.2m – Cable with break force 4,000lbs
Winch Motor – Rated at IP65 for waterproofness & dustproofness
Winch Solenoid – Rated at IP65 for dustproofness
Overall dimension (L x W x H) – 12.6 x 4.13 x 4.35"  /  320 x 105 x 110.5mm
Net weight – 14.6lbs  /  6.6kg
Mounting bolt pattern – 1.89 x 3"  /  48 x 76mm

Important
Winch suitable for small vehicle and trailer applications only.

A full range of winching equipment is also available from Britpart – including; safety gear, bumpers, chocks, hooks, shackles & ropes.

Together with the winches you’ll be able to ‘Get to where you want to go!’
