Lazer St4 Evolution – DA2841 – LAZER

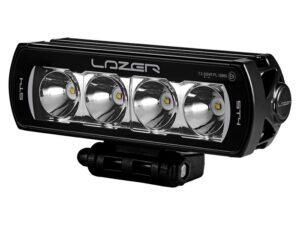

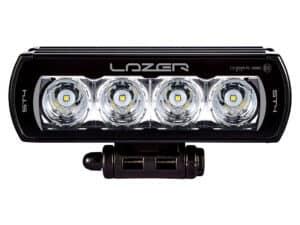

Re-engineered and re-designed for 2017/8, the ST4 Evolution is a hugely versatile LED spotlight the size of which has proved particularly popular within the road tuning, pick-up truck and 4×4 markets. At 204mm length, the ST4 delivers incredible lighting performance which belies its diminutive size. ECE approval ensures the light is suitable for full integration into your vehicles existing electrical system.

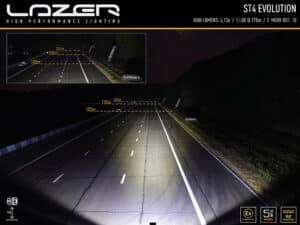

Upgraded high-density 11W LEDs are carefully selected for their high ‘bin’ rating, and deliver 4,136 lumens. Advanced electronic design, combined with sophisticated thermal management systems, and ultra-reflective vacuum-metallised reflectors, harness the light output into a ‘Drive’ beam pattern optimised for lower speed applications where the priority is for good all-round visibility, albeit still with enviable distance illumination – 1 lux is achieved at 278m. The colour temperature of the LEDs at 5000 kelvin has also been specifically selected to maximise sharpness and definition, while proven to reduce eye-strain associated with some higher (blue-white) colour temperatures.

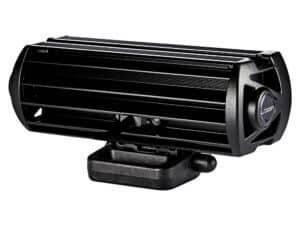

Performance aside, the ST4 Evolution is built to last. With a 5 year warranty as standard, and a lifetime guarantee on the ‘unbreakable’ polycarbonate lens, which is coated with a hardcoat lacquer to protect against any scratches, the light is capable of withstanding the harshest environments. An IP69K rating certifies the light will not be subjected to moisture or dust ingress, with additional counter-measures to ensure the unit remains fully contained even in the most extreme of temperatures and humidity. The full aluminium housing gives the light its strength and rigidity, while an e-coat pre-treatment provides automotive quality corrosion resistance. Dynamic drive modulation optimises light output considering the thermal conditions of the light (preserving the longevity of the LEDs).

With a seamless, low profile design, the new ST Evolution range is now not only easier to install, but is more resistant to dirt, snow and ice accumulations, and the contemporary styling is guaranteed to complement and enhance the appearance of modern vehicles.

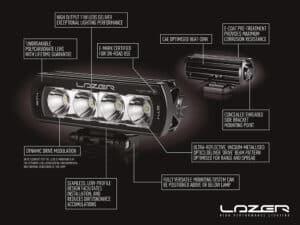

Key Features
> 4x high density 11W LEDs (premium ‘bin’)
> Seamless, low profile design facilitates installation
> Dynamic drive modulation optimises light output to preserve longevity of the LEDs
> Ultra-reflective optics deliver ‘Drive’ beam pattern
> CAE optimised heatsink
> E-coat pre-treatment provides maximum corrosion resistance
> Fully ECE Approved for Road use
> 5 Year Warranty
> ‘Unbreakable’ polycarbonate lens with lifetime guarantee
> IP69K rating
> Comes as standard with 30cm cable, including pre-wired male & female connectors.
> Made in Britain

Technical Specifications
> Voltage Range 10-32V
> LED Life 50,000 hours
> Weight 670 gr

High Beam Function
Total Luminous Flux 4136 Lm
Colour Temperature 5000K
Number of High Output LEDs 4
Power Consumption 47 Watts
Current Draw (at 14.4V) 3.3 Amps

Certification
High Beam ECE R112
ECE Reference 10

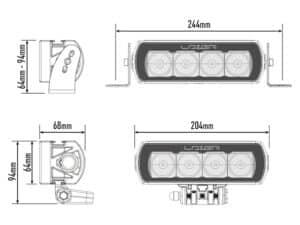

Dimensions
Width 204 mm
Depth 68 mm
Height 64 mm

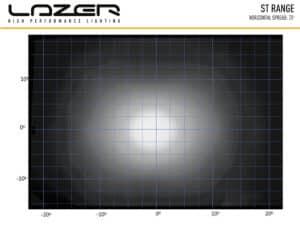

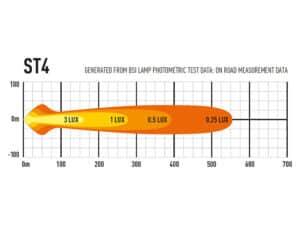

Photometric Data
Horizontal Beam Angle 28 degrees
0.25 lx Line 555 metres
0.5 lx Line 393 metres
1 lx Line 278 metres
3 lx Line 160 metres
