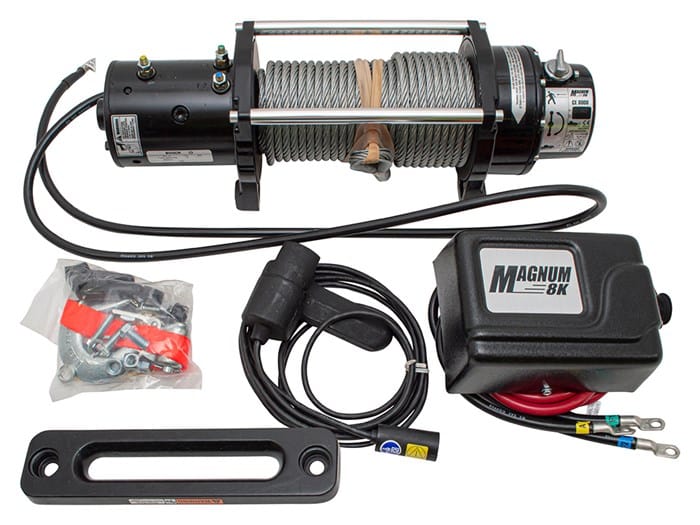

Rated Line Pull – 3629 Kg
1 - Available

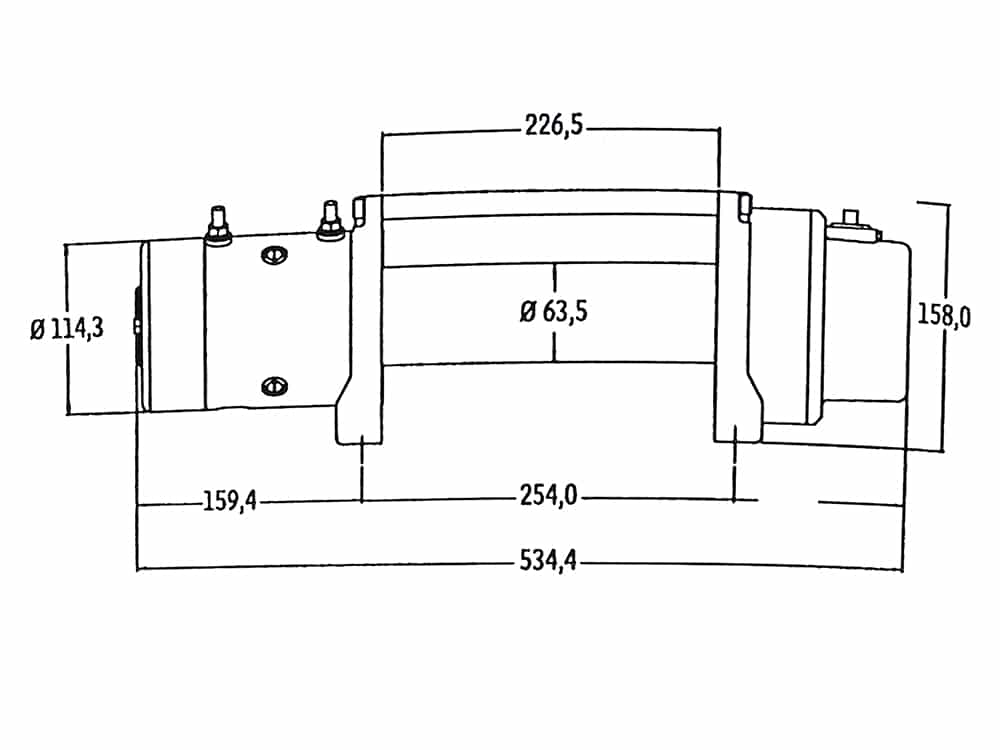

Dimensions 532.0 L x 160.0 D x 193.2mm H
Mounting Bolt Pattern 254 x 114.3 mm
Rated Line Pull 3629 Kg
Motor 3.6 Kw
Gear Train Ratio 216:1
Clutch (Freespooling) Sliding Ring Gear
Brake Internal Automatic
Drum Diameter/Length. 64mm/230mm
Wire Rope 24.4m x 8mm Diameter
Control (Length) Remote Switch & 3.7m Lead
Recommended Battery 650Cca Minimum For Winching
Battery Leads 2 Gauge/1.83m
Weight 34kg
Fairlead Hawse
Finish Black Gloss Powder Coat
For more information please contact your local Britpart stockist.
