Defender 90 Intelliride Airbag Kit – DA9200 – AIRBAG MAN

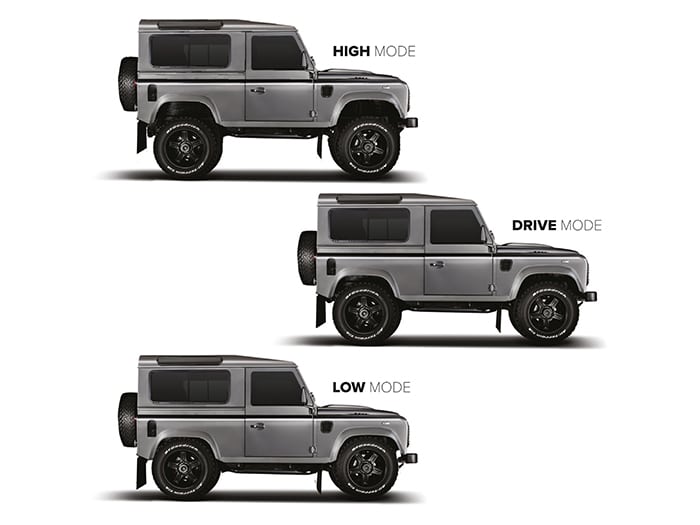

Height Range Automatic Mode
Ride Height up to Raised Height – Front: 40mm / Rear: 40mm
Ride Height down to Access Height – Front: -80mm / Rear: -80mm

Height Range Manual Mode
Maximum Height from Ride Height – Front: 50mm / Rear: 50mm
Minimum Height from Ride Height – Front: -100mm / Rear: -100mm

Why Intelliride ECAS?

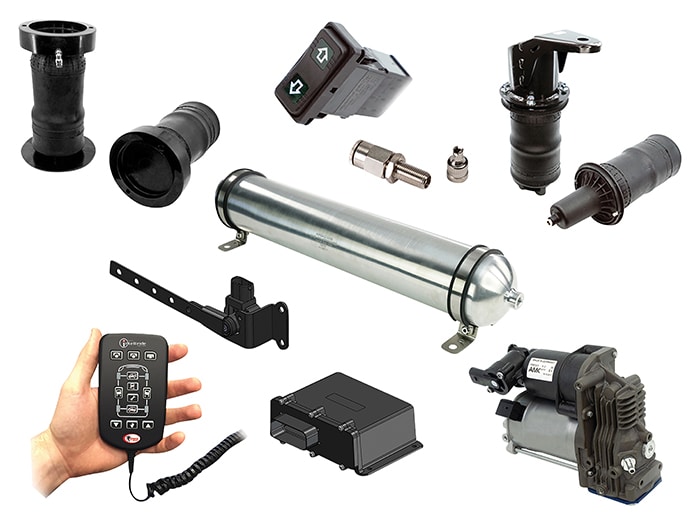

This front and rear axle full air suspension kit incorporates on-board air control which is a fully automatic Electronically Controlled Air Suspension (ECAS) System. When fitted, the system provides comfort while maintaining a programmed ride height irrespective of the load. Multiple vehicle heights are available at the push of a button.

The on-board system has automatic load levelling at each height which continuously monitors inputs and component performance as a means of increasing safety and durability. The on-board system recognises and responds accordingly to potholes, cross-articulation and extended turns. This intelligence prevents unnecessary activity and air consumption, it even recognises unachievable heights, assisting in the prevention of possible damage above or below the vehicle.
